The worker should stand on the right side to operate the machine.

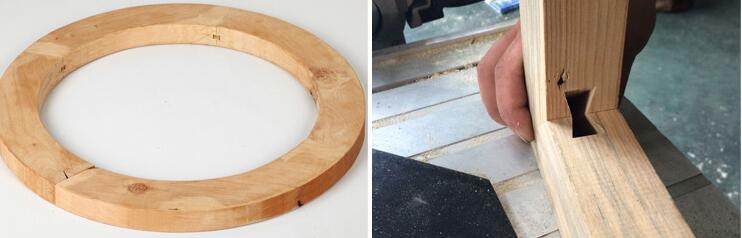

The machine is extensively used in jointing of cabinets, wardrobe, furniture, handicrafts, wooden armrest and so on. It is convenient to cutter tenon, mortise and bend workpiece which can be easily processed.



Operating Instruction:

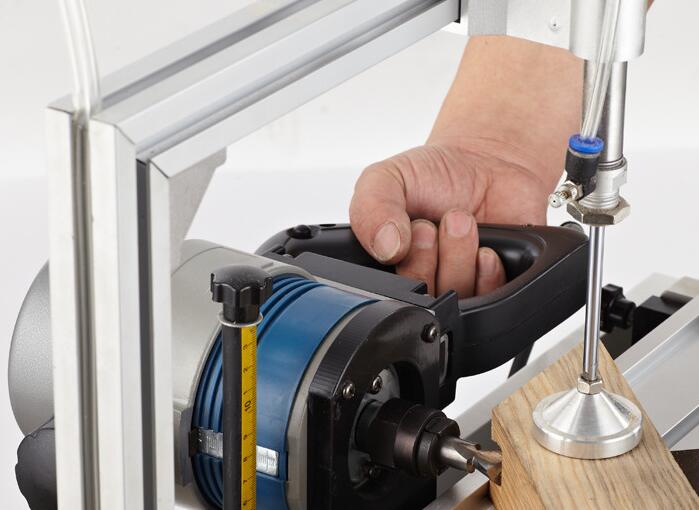

Put the workpiece on the side of 45 degrees plate (left or right )which is on the working table. Set milling cutter at the middle of workpiece and then set the length of groove (left&right). Stepping the switch with foot ,then the cylinder rod can press the workpiece automatically at the same time. Take the motor handle ,open the switch and pull the motor to cut the groove. When pulling the motor in place of setting position, the groove have been finished and then you can pull the motor return to the starting point





Model	MIR-06
voltage	220v/50hz
Air Pressure	6P
Electrical parameter	1050w
Running speed	23000r/min
Depth of grooving	H 0-80/L 0-250mm
Working height	110mm
Size	700*600*500mm
Weight	33 KGS
Dovetail specification	w2/3/4
