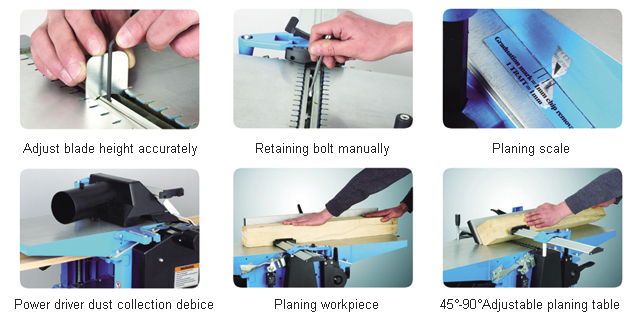

The Combined Planner and Thicknesser has the
double functions of surface and thickness plane.
lt is produced by high quality aluminum and owns
the advantage of flexible frame,light weight,steady
performance,efficient and safe operation.
We adopted the advanced technology from Germany
and our raw materials are all environment-friendly.
Model HC260XS-02
Length of planing table 1015mm
Length of thickness table 400mm
Max width of planing 260mm
Max Width of thickness 160mm
Max Depth of Planing 3mm
Diameter of cutter block 62.5mm
Noise <90dB
Cutter block speed 6500r/min
Thicknesser feed rate 5m/min
Motor speed 2800/3400r/min
Guide plate tilt 45-90
Height of planing table 840mm
Net wEIGHT 66Kg
|
